Ultrasonic Flaw Detector TOFD-400

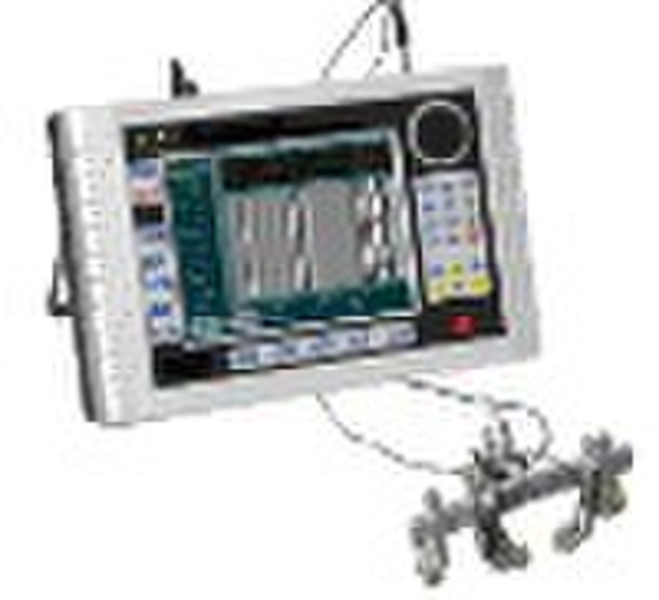

Ultrasonic Flaw Detector TOFD-400 TOFD-400 Ultrasonic Flaw Detector,TOFD technique is to use the work of a new ultrasonic non-destructive testing equipment.It is the high rate of detection of defects in quantitative high positioning accuracy, detection is simple and quick detection efficiency.With intelligence operations, "one button TOFD" scanning to enable beginners to quickly master, unique touch-screen controls, buttons and the mouse can be used simultaneously, Shuttle controls can be a shuttle in the end, the operation is extremely simple, is the most compact "TOFD" flaw detector, including the battery weighs only 2.25 kg. Parameter Pulse type Negative square wave pulse(adjustable)Pulse edge<10nsPulse width30 1000ns continuously adjustableRepetition frequency100 1000Hz adjustableDetection modehardware detectionsampling frequency100MHzFrequency band width0.5 5MHz,2 10MHz,4 15MHz,0.5 20MHz(broadband)Waveform displayradio-wave, full wave, positive half-wave, negative half-waveSound Velocity Range300 20000m/sSound range5 200μsDelay range0 200μsTrigger Modeencoder trigger(maximum resolution 0.25mm),time-triggered(Maximum Resolution force 5ms)Equivalent Input Noise40×10 V/Attenuation Accuracy< ±1dB/20dBAfter the transmit pulse blind< 2nsImaging modeaccording to the instrument settings and scanning mode display B sweep, D sweep, P sweep, TOFD imagingRecord methodComplete raw data recording method records (per period "= 5 points)Scan lengthlongest single-200m, each piece of 2m can be saved 200pcsOff-line data analysisrecovery and playback scan A-scan waveforms recordedDefect size and contourThickness / amplitude data statistical analysisData reportdirectly printed check sheet, A scan waveform, B scan images, D scan images, TOFD imageRunning Memory1 GAvailable Flash2 GOutputLAN,VGA,USB2.0Display6.5 "True Color Highlight SVGA640 × 480 pixel high-resolution LCD touch screenControltouch-screen views, front panel keypad, ShuttleCompatible external devicesUSB, keyboard, mouse, connected via USB or LAN printer, PC, SVGA external display projectorPower6600mAH lithium-ion battery, working time "six hours, external 19V adapterDimensions257 (W) × 168 (high) × 64 (thickness) mm (with battery)Weight2.25 kg (including battery)Features:1. "One button TOFD" scanning, so that TOFD testing more easier. 2. Unique touch-screen controls, buttons and the mouse can be used simultaneously, Shuttle controls can be a shuttle in the end, the operation is extremely simple. 3. The most compact "TOFD" flaw detector, weighing only 2.25 kg with battery 4. Real-time help tips, ultrasonic flaw detection wave diffraction to solve the traditional single-scan detection limits of the region and non-intuitive. 5. high-brightness high-resolution true color LCD touch screen. 6. USB, LAN, SVGA output interface. 7. Built-in probe position encoder. 8. large-capacity data storage space. 9. with A scan, B scan, D-scan and TOFD imaging capabilities. 10. Real-time A-scan waveform display debugging the instrument is more fast and accurate. 11. A scan waveform and B, D scanning image synchronized display, so that scanning is more intuitive. 12. This machine scanning browsing records, and can playback A scan waveform. 13. Defect size, location and type of accurate analysis. 14. Manually configure the user-friendly and efficient scanning frame, portable scanning devices instead of manually scanning, detection faster and more accurate.
